OBIEE Installation

Installing a Loopback Adapter on Windows7 /Vista 64 Bit and 11g R2 Database (64 Bit) and RCU creation and Oracle Business Intelligence, v.

My System Configuration :  RAM : 8 GB
Operating System: Windows7/ Vista/ -64 BIT

Before the Installation: First question in my mind was whether we should go for 64 bit java or 32 bit java [ After seeing few posts in OTN]. To clarify my doubts I went through the documentation. The points to be noted are as follows

1)      For all install types (Simple, Enterprise, and Software Only), the steps for installing
 Oracle Business Intelligence are the same on 32-bit and 64-bit operating systems if you Want to use the JDK that is provided with Oracle Business Intelligence

Simply follow the steps provided for those install types whether you’re installing on a 32-bit or 64-bitoperating system.

2)      However, to use another JDK, you must install it before installing Oracle WebLogic
Server and Oracle Business Intelligence

3)      Oracle Business Intelligence does not support 32-bit JDKs on 64-bit operating
Systems and 64-bit JDKs on 32-bit operating systems. Ensure that the JDK you
Install matches the bit architecture of your operating system.

Installing Oracle Business Intelligence 11g with Your Own Java Development Kit (JDK)

4)      Install your own JDK first

5)      Install Oracle WebLogic Server.

6)      Install Oracle Business Intelligence 11g using the Software Only Install type.

7)      If you install a 32/64-bit hybrid JDK on a 64-bit operating system, ensure that it is
deployed in 64-bit mode

8)      If you install your own 64-bit JDK, ensure that your JAVA_HOME refers to it.
References: Oracle Documentation

 Now I am just moving with default JDK provided with OBIEE software

Control Panel >>>Classic view >>>> Add Hardware


OBIEE  Installation on Windows Xp/WIndows 7(32-BIT)

In the OBIEE Certification,  I didn't see windows 32-Bit as supporting Operating system

My System Config :
1)RAM - 4 GB..
2) OS- WIndows 7 32 bit

 For Installing a Loop back Adapter on Windows XP-32 Bit , 11g R2 oracle database refer my earlier blog entry.

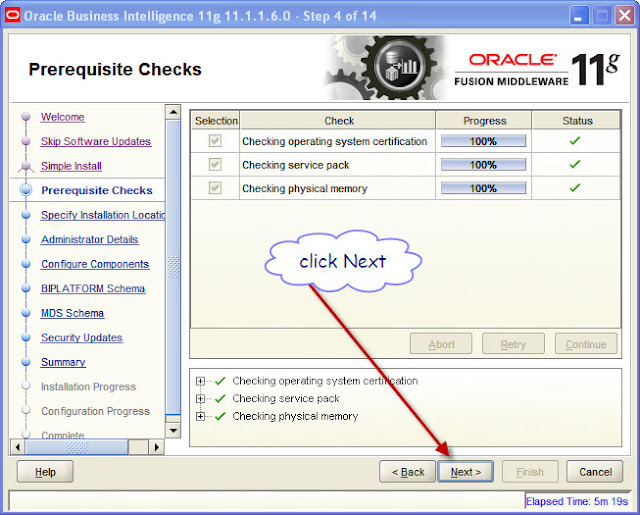

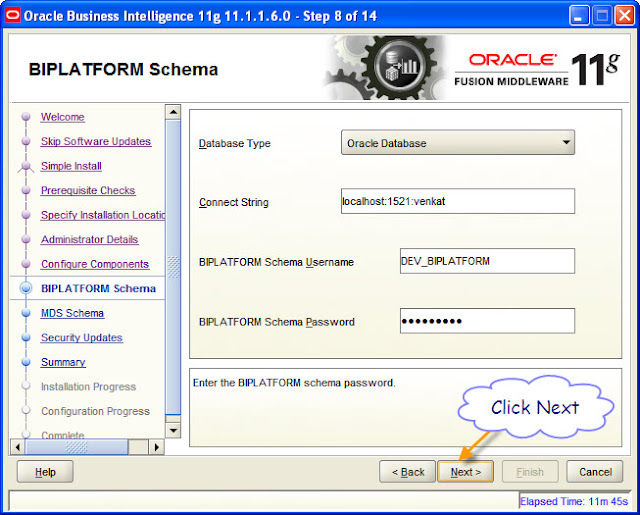

OBIEE Installation:


Please feel free to post your comments.

Please watch OBIEE 11g Simple instllation.

Satya Ranki Reddy


  1. Hello Satya Ranki Reddky!

    Thank you for your post. I have a small problem when install Oracle BIEE 11g.

    I'm installing Oracle BI 11g on Window7 32 bit.
    It's almost done. But I have an error at Configuration Progess / Configuring OCM failed. The message is: "Error encountered in deploying OCM instance. Exit code =1"

    I check the install Log:
    Error : C:\PROGRA~1\Java\JDK17~1.0_0\bin does not contain java.[[
    JAVA_HOME does not contain a valid JDK/JRE.
    Redefine JAVA_HOME to refer to a JDK/JRE 1.3.0 or greater.

    when I check the System variables:
    JAVA_HOME = C:\Program Files\Java\jdk1.7.0_05\bin\

    Maybe I have problem in JDK version?

    Can you plz help me fix?

    Thank you


  2. Hi Pham,

    Thank for visiting my blog.

    I guess this could be jdk problem. I can suggest you please install jrocket 1.6.

    Please reply me below queries.

    1. Have you tried multiple times for installation in your system?
    2. Have you given temp directory?

    If you tried multiple times for installation in your system.—If yes
    Then you can re format system then install jrocket then install database then create loopback adapter then install rcu then install OBIEE.

    Please let me know still are you facing any issue. I will try to connect team viewer and will fix the issue.


  3. Hi Satya,

    Thanks for your helping.
    I will try to re-install today. If any broblem, I would like to have your help.

    Thank again and Happy New Year 2012 to you.

  4. Hi Satya !
    You say you successfully installed OBIEE 11g on Windows 7 64 bits but your wornderfull example is about 32 bits.
    Did you install it on Windows Home Premium 64 bits ?
    Thank You

  5. Hi Satya !
    I have installed OBIEE 11g on Windows 7 64 bits but
    I am getting following error (saw0.log) while log in after successful installation:
    Odbc driver returned an error (SQLDriverConnectW).
    State: IM002. Code: 10040. [NQODBC] [SQL_STATE: IM002] [nQSError: 10040] The requested data source name is either not found, incomplete, or incorrect
    Any pointer is appreciated.
    Thank You

  6. hi satya
    when im instaling 11g1.1.6
    imgetting this error
    INST-08029 unable to connect to database with the given credentcials.

  7. Hi Satya
    When I follow the steps you provide to install OBIEE, I always encounter the failure of process that create domain in BI Configuration.
    Have you face the same error and how to solve it?

  8. Hi ,
    satya i have tried multiple times ,i follow ur process but same problem, creating domain error, can i instal OBIEE 11g using vmware ?
    , 1- i create loopback static IP and disable firewell,all r follows, but cant success.

  9. This comment has been removed by the author.

  10. Hi Satya,

    I want to know the type of processor and hard disk space for installing OBIEE version.

    Can you please help me about that details ?

    Thank you
